MB-A670-R20 12th/13th/14th Gen Intel? Core ? Processor ATX
? 支持Intel 12/13/14代Core i3/i5/i7/i9處理器 ?采用Intel Q670芯片組 ?支持2 X Intel千兆網口, 8 X USB 3.0, 5 X USB 2.0, 6 X COM ?提供1 X VGA, 1 X HDMI,1 X DP ?支持2 X PCIe X16, 4 X PCIe X4, 1 X PCI ?支持vPro, AMT, RAID, TPM 2.0, Case Open
咨詢熱線：
- 產品描述
- 1
- 2
- 3
-
- 商品名稱: MB-A670-R20 12th/13th/14th Gen Intel? Core ? Processor ATX
? 支持Intel 12/13/14代Core i3/i5/i7/i9處理器 ?采用Intel Q670芯片組 ?支持2 X Intel千兆網口, 8 X USB 3.0, 5 X USB 2.0, 6 X COM ?提供1 X VGA, 1 X HDMI,1 X DP ?支持2 X PCIe X16, 4 X PCIe X4, 1 X PCI ?支持vPro, AMT, RAID, TPM 2.0, Case Open
規(guī)格
General CPU Intel® 12/13/14th Generation Core /Pentium /Celeron CPU , LGA1700 , Support MAX CPU TDP 125W 芯片組 Intel® Q670 內存 4 X DDR5 UDIMM , Up to 192GB 4800/5200/5600(Single/Dul 16G）MHz 硬盤 4 X SATA 3.0 , RAID 0/1/5/10 ,
1 X M.2 2242/2280 M key (NVMe/SATA)1 X M.2 2280 M key (NVMe/SATA)
擴展槽 2 × PCIe X16 (PCIe 1 x 16X or 2 x 8X, GEN4)
3 × PCIe X4 (PCIe 4X, GEN4)
1 × PCIe X4 (PCIe 4X, GEN3)
1 × PCI
1 × M.2 2230 E key (WIFI/BlueTooth)BIOS AMI UEFI BIOS 系統(tǒng) Windows 10/11,Linux I/O 接口 以太網 2 X Intel GBE LAN (10/100/1000 Mbps, RJ45） 串口 1 × RS232 (COM1 , Rear IO)
3 × RS232 (COM2/5/6 , Header)
1 × RS232/RS422/RS485 (COM3 , Header)
1 × RS232/RS485 (COM4 , Header)USB 6 × USB3.0 (TYPE-A , Rear IO)
2 × USB3.0 (Header)
1 × USB2.0 (TYPE-A)
4 × USB2.0 (Header)音頻 Realtek Audio HDA Codec , Support MIC-IN/LINE-IN/LINE-OUT PS/2 1 × PS/2 (Keyboard & Mouse) 并口 --- Parallel Port 2 X 8-bit GPIO 顯示 顯示界面 1 × VGA , up to 1920x1200@60Hz
1 × HDMI , to 4096x2160@30Hz
1 × DP , up to 4096x2160 @ 60Hz -
機械和環(huán)境 尺寸 305mm X 244mm 電源 ATX (24P+8P+4P) 相對溫度 Operation: 0℃~60℃, Storage: -25℃~75℃ 相對濕度 Operation: 10%~90%, Storage: 5%~95%,
non-condensing -

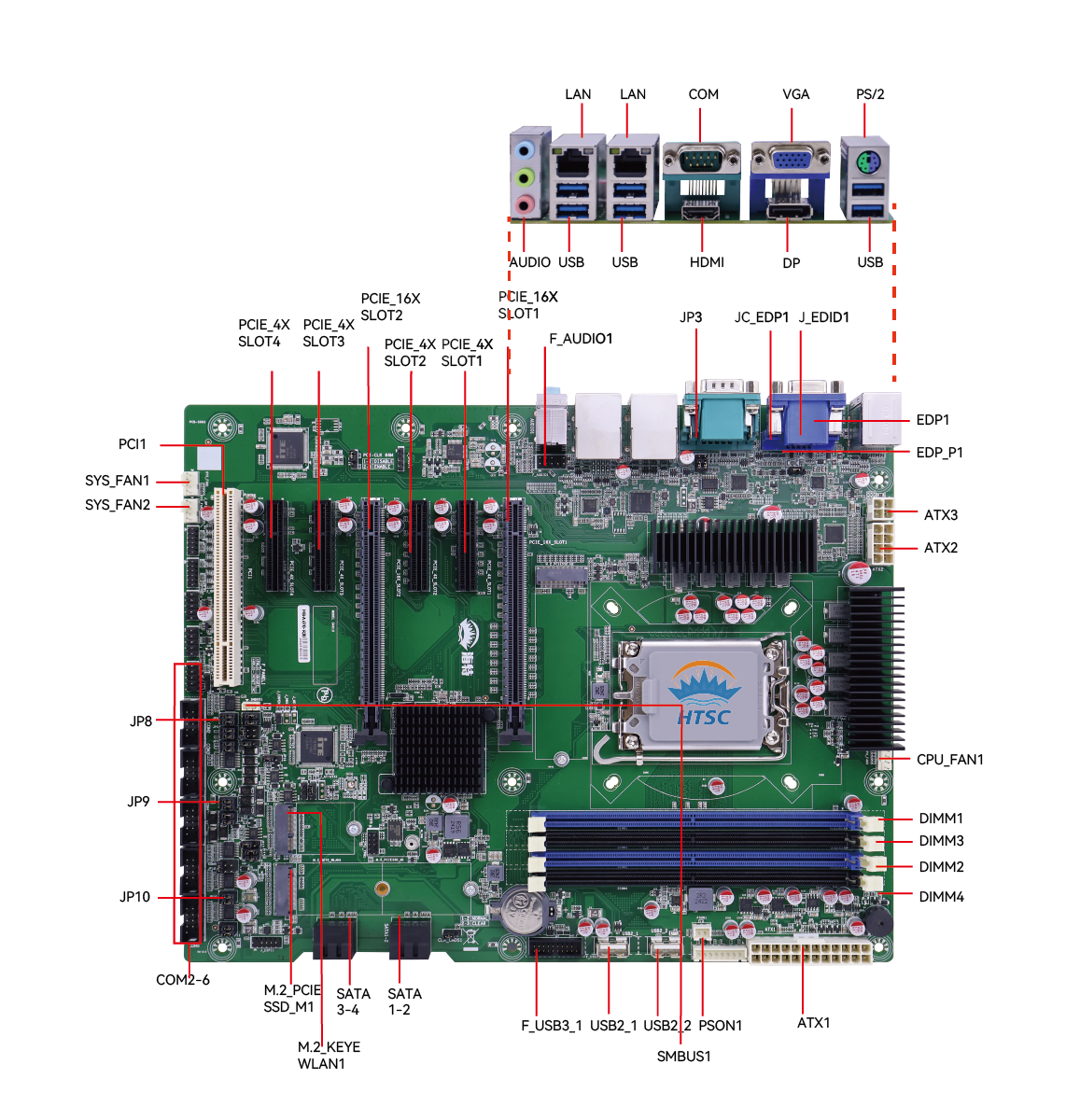

接口示意圖
-
